Receive Device Status Updates via Webhook

Audience: End Users / Customers
Objective: Learn how to configure a webhook in OMS to receive real-time updates when device status changes (e.g., input source or volume).

Overview

OMS supports Webhook notifications that automatically send device status changes to your system.

Once configured, OMS will notify your webhook endpoint whenever key device states—such as Input Source or Volume—are updated.

This allows you to:

  • Monitor device behavior in real time

  • Sync device status with your own system or dashboard

  • Reduce the need for manual status checks

Before You Start

Before configuring a webhook, make sure you have:

  • An active OMS account with access to System Settings

  • At least one device already paired with your OMS tenant

  • A webhook receiver URL

    • This is an HTTPS endpoint on your system that can receive HTTP POST requests

  • Network access allowing OMS to reach your webhook endpoint

Note: The webhook receiver is managed by you. OMS only sends event data and does not host the receiving service.

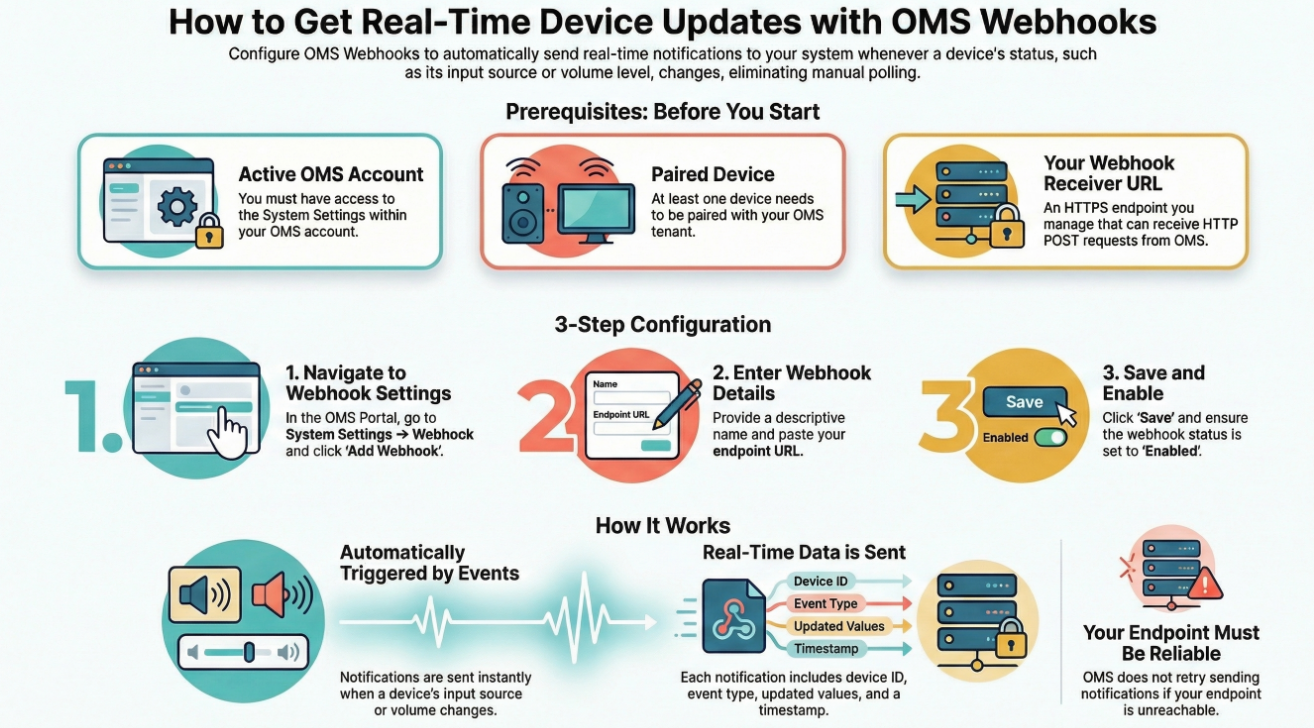

Step-by-Step: Configure a Webhook in OMS

Step 1: Open Webhook Settings

  1. Sign in to the OMS Web Portal

  2. Navigate to:

    System Settings → Webhook

Step 2: Create a New Webhook

  1. Click Add Webhook

  2. Enter the following information:

    • Webhook Name: A descriptive name (e.g., Device Status Update)

    • Endpoint URL: The HTTPS URL that will receive webhook notifications

Step 3: Save and Enable

  1. Review your settings

  2. Click Save

  3. Ensure the webhook endpoint status is ready.

It's done.

Your webhook is now active, what happens after setup:

  • When a device’s input source changes
    (for example, HDMI → DisplayPort)

  • Or when the volume level is adjusted

OMS will send a webhook notification to your configured endpoint.

Webhook Payload Definition

Payload example

 {
   "resources": [
     "/devices",
     "/device/{device_id}/power"
   ],
   "device_id": "83e676c6-50f0-474c-9c29-972eed2518a2"
 }

  • resources - Indicates which device resources were changed

  • device_id - The unique identifier of the device

Resources describes what changed on the device, each resource corresponds to an OMS API endpoint where updated information can be retrieved.

Below are common device operations and the related resource values included in the webhook payload:

Resources Operation

/device/{device_id}/power Power On / Off

/devices Inputsource, Volume

Custom Headers

If Custom Headers are configured when creating the webhook:

  • All outgoing webhook requests will include the specified Header Key and Header Value

Secret Token & Request Signature (Optional)

If a Secret Token is configured, OMS will include an additional HTTP header:

  • x-webhook-signature

This signature allows you to verify that the request was sent by OMS and the verification process is:

  1. Serialize the original payload

  2. Use the Secret Token to calculate an HMAC-SHA256 hash

  3. Compare the calculated hash with the value in x-webhook-signature

JavaScript Example

Timing & Behavior Notes

  • Webhook notifications are sent automatically when a change is detected

  • Updates are delivered in near real-time

  • Minor delays may occur depending on network conditions (around 7 seconds)

Common Notes & Limitations

  • Webhooks are event-driven, They are triggered only when a status changes, not on a fixed schedule.

  • OMS does not retry indefinitely if your endpoint is unreachable.

  • Make sure your endpoint can handle repeated or frequent updates if device status changes often.

Summary

By configuring a webhook in OMS Web Portal → System Settings → Webhook, you can easily receive automatic updates whenever device status changes—such as input source or volume—without manual polling.

This setup helps keep your systems synchronized with real-time device behavior in a simple and scalable way.
